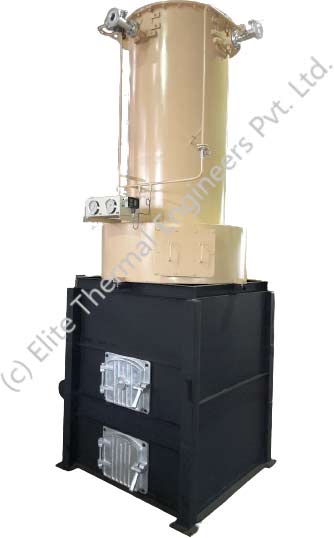

Solid Fuel fired Thermic Fluid Heaters
Coal fired Thermic Fluid Heaters
Biomass Briquettes fired Thermic Fluid Heaters
Wood fired Thermic Fluid Heaters
Salient features:
- Semi-automatic operation
- Thermal efficiency of 80% with heat recovery unit
- High life for thermic fluid and coils due to high velocity turbulent flow in heater coils
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
Technical Specifications:
- Orientation: Vertical
- Capacities: 100000 kcal/hr to 2500000 kcal/hr
- Max. thermic fluid supply temperature: 280 deg. C (Standard), 300 / 350 deg. C (Optional)
- Fuel suitability: Coal / Biomass Briquettes / Wood
- Efficiency: 80% on NCV of fuel with external combustion air preheater as heat recovery unit
Applications:
Our solid fuel fired thermic fluid heaters have applications in various types of industries like automobile, engineering, food processing, laundry, edible oil, textile, pharmaceutical, chemical etc. where hot thermic fluid is required for indirect process heating purpose with high process temperature requirements generally above 200 deg. C and using renewable fuels like biomass briquettes etc.
