Oil / Gas fired Non IBR Coil type Steam Boilers

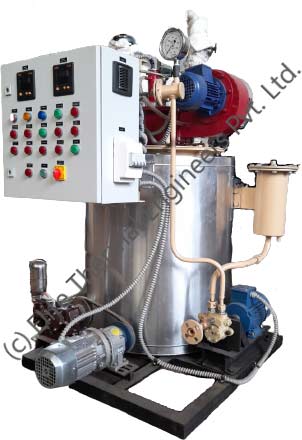

Small Capacity - STEAMOBILE
- High thermal efficiency of 88% on NCV of fuel
- Instant steam within 3 to 5 minutes from cold start
- Outside the purview of Indian Boiler Regulations (IBR), so no annual IBR inspection formalities required and IBR certified boiler attendant is not required to operate the boiler
- No risk of pressure vessel rupture
- Compact space saving design
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 50 kg/hr / 100 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 10.54 / 15 kg/cm2 (g)
- Fuel suitability: Light Diesel Oil (LDO) / High Speed Diesel (HSD) / Diesel / Natural Gas / LPG
- Burner: Own/Imported make, pressure jet type, On – Off, fully automatic
- Efficiency: 88% on NCV of fuel
Our small capacity Non IBR steam boilers have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where steam requirement is very small and instant steam is required in minimum possible time from cold start for a start – stop (batch) operation for indirect and direct process heating purpose.

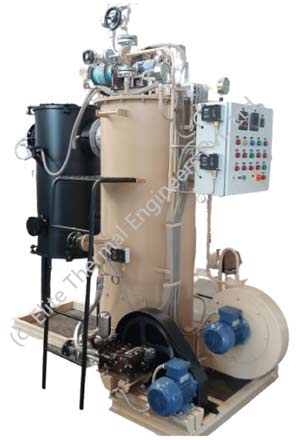

Medium Capacity - CTNIB
- High thermal efficiency of 88% on NCV of fuel
- Instant steam within 3 to 5 minutes from cold start
- Outside the purview of Indian Boiler Regulations (IBR), so no annual IBR inspection formalities required and IBR certified boiler attendant is not required to operate the boiler
- No risk of pressure vessel rupture
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 200 kg/hr to 1000 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 10.54 / 15 kg/cm2 (g)
- Fuel Suitability: Light Diesel Oil (LDO) / High Speed Diesel (HSD) / Diesel / Furnace Oil (FO) / Low Sulphur Heavy Stock (LSHS) / Natural Gas / LPG
- Burner: Own make, pressure jet type, On – Off, fully automatic
- Efficiency: 88% on NCV of fuel with heat recovery unit
Our medium capacity Non IBR steam boilers have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where steam requirement is medium and instant steam is required in minimum possible time from cold start for a start – stop (batch) operation for indirect and direct process heating purpose.
