Oil / Gas fired IBR Smoke Tube type Steam Boilers

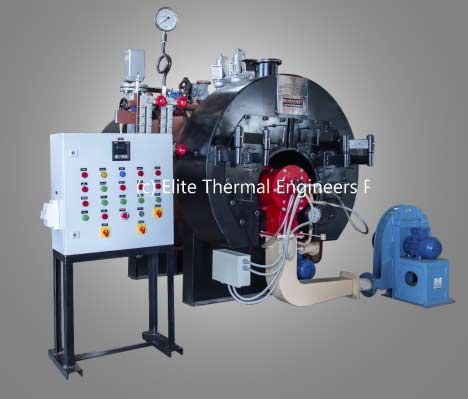

Small Capacity - SIB-OG

- High steam dryness fraction increases usable heat for application process
- High thermal efficiency of 89%
- Designed and manufactured in accordance with Indian Boiler Regulations (IBR)
- IBR certified attendant not required to operate the boiler
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 200 kg/hr to 600 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 7 kg/cm2 (g)
- Fuel suitability: Light Diesel Oil (LDO) / High Speed Diesel (HSD) / Diesel / Furnace Oil (FO) / Low Sulphur Heavy Stock (LSHS) / Natural Gas / LPG
- Burner: Own make, pressure jet type, On – Off, fully automatic
- Efficiency: 89% on NCV of fuel without heat recovery unit
Our IBR Oil / Gas fired small industrial boilers (SIB) have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where small quantity and low pressure dry steam is required for indirect and direct process heating purpose.

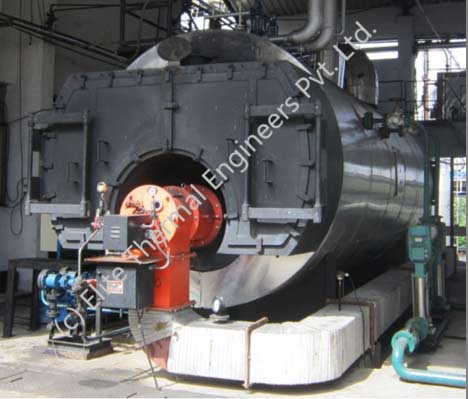

Medium to High Capacity: - STB-OG

- Thermal efficiency of 89% without heat recovery unit and 93% with heat recovery unit
- Designed and manufactured in accordance with Indian Boiler Regulations (IBR)
- Fully wetback construction ensuring maximum heat absorption by water
- Feedwater preheater is offered as optional heat recovery unit
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 1000 kg/hr to 6000 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 10.54 / 17.5 kg/cm2 (g)
- Fuel suitability: Light Diesel Oil (LDO) / High Speed Diesel (HSD) / Diesel / Furnace Oil (FO) / Low Sulphur Heavy Stock (LSHS) / Natural Gas / LPG
- Burner: Own/Indigenous/Imported make, pressure jet type, High – Low / Continuous Modulating fully automatic
- Efficiency: 89% on NCV of fuel without heat recovery unit / 93% on NCV of fuel with heat recovery unit
Our IBR Oil / Gas fired medium to high capacity boilers have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where medium to high quantity and medium pressure dry steam is required for indirect and direct process heating purpose.
