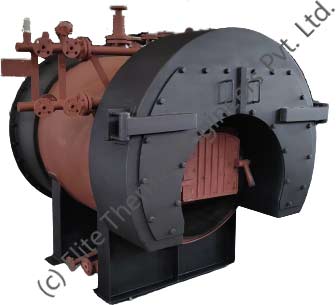

Solid Fuel fired IBR Smoke Tube type Steam Boilers
Small Capacity - SIB-SF
Coal fired Small Industrial Boilers
Elite Thermal Engineers Pvt. Ltd. presents a reliable and cost-effective Coal Fired 600 kg/hr SIB Steam Boiler, designed specifically for industries seeking an economical solution for medium-scale steam requirements. This Non-IBR (Small Industrial Boiler) is easy to install, operate, and maintain, making it an ideal fit for various industrial heating applications where solid fuel is preferred.
Wood fired Small Industrial Boilers
Elite Thermal Engineers Pvt. Ltd. offers a durable and eco-friendly Wood Fired 600 kg/hr SIB Steam Boiler, designed for industries that prefer biomass-based fuel sources for steam generation. As a Non-IBR (Small Industrial Boiler), this model eliminates the need for complex statutory clearances, making it ideal for small to medium-scale industries that demand efficiency, simplicity, and low running costs.
Biomass Briquettes fired Small Industrial Boilers
Elite Thermal Engineers Pvt. Ltd. offers the high-performance Briquettes Fired 600 kg/hr SIB Steam Boiler, crafted for industries that prefer a sustainable and cost-effective alternative to conventional fuels. This Non-IBR (Small Industrial Boiler) is designed to operate efficiently on biomass briquettes, offering reduced emissions, lower operating costs, and compliance with green manufacturing standards.
- Semi-Automatic operation
- High thermal efficiency of 78% with heat recovery unit
- Designed and manufactured in accordance with Indian Boiler Regulations (IBR)
- IBR certified attendant not required to operate the boiler
- Liberal furnace volume supports complete combustion of solid fuels
- Adequately sized firing door for ease of firing and easy access for ash removal
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 300 kg/hr to 600 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 7 kg/cm2 (g)
- Fuel suitability: Coal / Biomass Briquettes / Wood
- Optional heat recovery unit: Feedwater preheater
- Efficiency: 78% on NCV of fuel with heat recovery unit
Our IBR Coal/Biomass Briquettes/Wood fired small industrial boilers (SIB) have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where small quantity and low pressure dry steam is required for indirect and direct process heating purpose using renewable fuels like biomass briquettes etc.

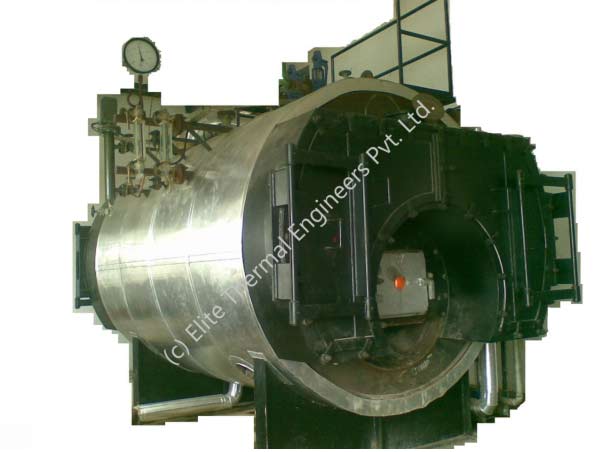

Medium to High Capacity: - SFIFB
- Semi-Automatic operation
- High thermal efficiency of 82% with heat recovery unit
- Designed and manufactured in accordance with Indian Boiler Regulations (IBR)
- Liberal furnace volume supports complete combustion of solid fuels
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 600 kg/hr to 4000 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 10.54 / 17.5 kg/cm2 (g)
- Fuel suitability: Coal / Biomass Briquettes / Wood
- Optional heat recovery unit: Combustion air preheater
- Efficiency: 82% on NCV of fuel with heat recovery unit
Our medium to high capacity IBR Coal/Biomass Briquettes/Wood fired steam boilers have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where medium to high quantity and medium pressure dry steam is required for indirect and direct process heating purpose using renewable fuels like biomass briquettes etc.

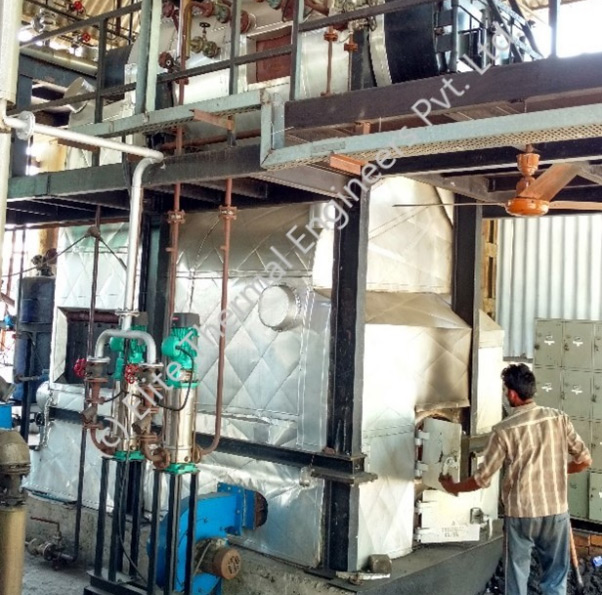

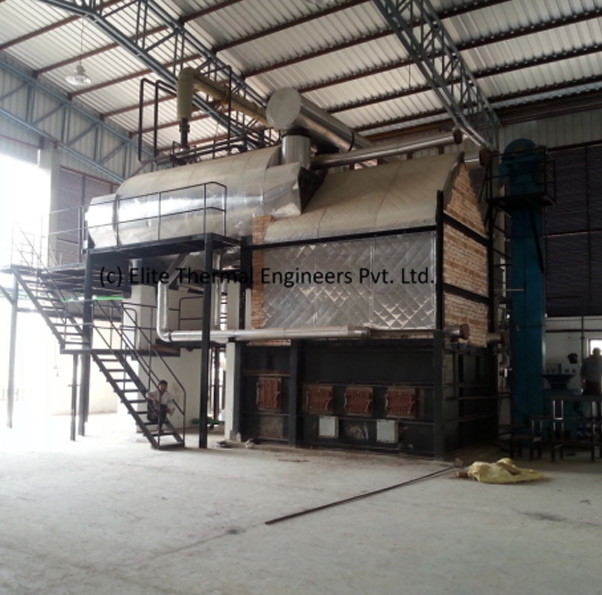

High Capacity: - SFEFB / SFHYB
- Semi-Automatic operation
- High thermal efficiency of 82% with heat recovery unit
- Designed and manufactured in accordance with Indian Boiler Regulations (IBR)
- Liberal furnace volume supports complete combustion of solid fuels
- Reliable and robust components offering smooth and trouble-free operation
- Provision of extremely reliable safeties and controls
- Steam output capacity: 4000 kg/hr to 8000 kg/hr (F & A 100 deg. C)
- Pressure (SVLOP): 10.54 / 17.5 kg/cm2 (g)
- Fuel suitability: Coal / Biomass Briquettes / Wood
- Optional heat recovery unit: Combustion air preheater
- Efficiency: 82% on NCV of fuel with heat recovery unit
Our high capacity IBR Coal/Biomass Briquettes/Wood fired steam boilers have applications in various types of industries like automobile, engineering, food processing, laundry, hotels, hospitals, dairy, edible oil, textile, pharmaceutical, chemical etc. where high quantity and medium pressure dry steam is required for indirect and direct process heating purpose using renewable fuels like biomass briquettes etc.
- Proven performance in rugged industrial environments
- Over 30 years of engineering excellence in steam solutions
- Custom designs tailored to fuel availability and process demand
- Dedicated after-sales support and technical assistance
